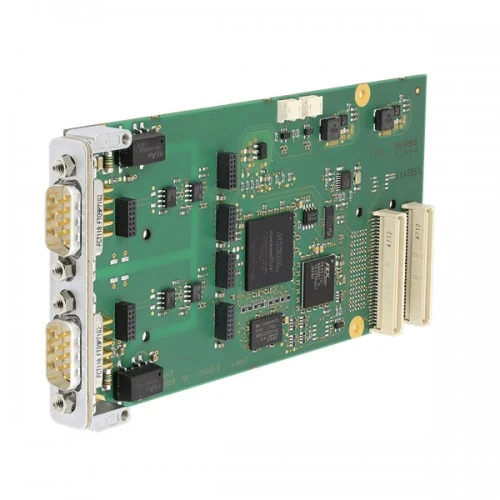

CAN-IB410/PMC PC/CAN interface board
CAN-IB410/PMC PC/CAN interface board
Precio:
1,104.00€
- : En stock
- Marca: HMS Industrial Networks
- Model: 1.01.0314.22001
CAN-IB410/PMC PC/CAN interface board
With the CAN-IB410/PMC HMS offers an interface board based on a modern and highly modular concept for PMC systems (PCI Mezzanine Card). The board covers a wide range of field buses, such as CAN (ISO 11898-2), fault tolerant CAN (ISO 11898-3) and LIN.
Features and benefits
- Active board with 32 bit microcontroller
- Easy expandable via MultiCAN expansion and fieldbus expansion
- Up to four CAN channels (High-/Low-Speed optional switchable)
- LIN optional
- Galvanic isolation of the CAN interface
- Uniform driver packages support all Ixxat CAN and CAN-FD interfaces and allow easy change of the PC interface type
- Powerful programming interface for Windows "VCI" as well as "ECI" for Linux, QNX, RTX, INtime and VxWorks
Standart Slot Bracket Version
| CAN ports | Galv. iso. | Model numbers | Optional expansions | Additional information |
|---|---|---|---|---|
| 2 | X | 1.01.0314.22001 | 2 x Fieldbus Expansion For variants and order numbers see table below |
|
| 4 | X | 1.01.0314.22001 + 1.01.0242.22200 Multi CAN Expansion |
Two CAN ports on each SUB-D9 plug |
Fieldbus Expansions
| Type | Galv. iso. | Order numbers |
|---|---|---|
| CAN Low-Speed (ISO 11898-3) + LIN (ISO 9141) for PMC and XMC boards | X | 1.01.0241.20200 |
